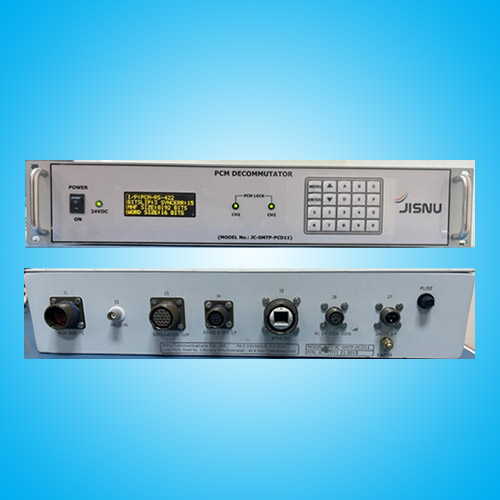

PCM Decommutator
De-commutation (Decom) system is a PC based data acquisition system with PCM Frame Synchronizer system supported by Telemetry application & data processing software. It receives Clock& Data signals from the Bit-Synchronizer. It acquires, processes, Time
tags the data, Displays the parameters as per the user requirements and logs the data locally.
Applications
- Telemetry Reception System
- Range or Satellite application
- Dual channel Decommutation with per channel rate upto 5 Mbps
- Data Transfer through ethernet in real time
- Programmable Frame Length, Word size and Frame Sync Code
- Frame Sync error tolerance
- Inbuilt test simulator
- IRIG time stamping
| Functional | |
|---|---|
| DECOMMUTATOR | |
| Output Format | Compliant with IRIG-106 Class A |
| Inputs | a) Two channels of Data & Clock |
| b) IRIG-B Time | |
| Input Levels | Single-ended TTL & RS-422 levels |
| Data polarity | Auto, Normal, Inverse (Programmable) |
| Clock Phase | 0o, 180o selectable |
| Input data rate | 100 bps-5 Mbps |
| Time input | a) IRIG-B 1KHz modulated Signal. |
| b) External GPS interface. | |
| c) Any other time source over Ethernet Interface. | |
| Bit Order | MSB or LSB first (selectable) |
| Sync Error Tolerance | 0-15 bits (selectable) |
| Bit Sip window | 1or 3 bits wide (selectable) |
| Sync polarity | Normal, inverted, automatic detection (selectable) |
| Sub frame sync | FCC, SFID |
| SFID location | Anywhere in the frame (programmable) |
| Time tagging resolution | 1 ms |
| Communication Interface | 10/100 Base-T for Data Transmission to Laptop & Configuration from Tab. |
| Application Software | Configuration, Format entry, real-time processing, EU conversion, display, logging and transmission to remote location (UDP) and post processing |
| Signal I/O connections | Data, Clock and IRIG time -Circular connector Ethernet - RJ45, GPS interface - 15 Pin DB |
| SIMULATOR | |
|---|---|
| No. of Channels | 2 Data & 2 Clock output Signals |
| Data Rate | 5 Mbps Maximum |
| Output Levels | TTL & RS-422 |
| Data Format | As per IRIG 106 |
| Format Content | User Defined from GUI |
| User Interface | |
|---|---|
| Display | 4X20 OLED |
| Keypad | 5X5 membrane Type |
| Electrical | |
|---|---|
| Power supply | 230V±15V AC, 1 Phase, 50 Hz or 24V±4V DC |
| Mechanical | |
|---|---|
| Dimensions | 2U-19-inch rack mount with 350 mm depth |
| Weight in Kg | < 5Kg |
| Environmental | |
|---|---|
| Temperature | |
| Operating | -20oC to +55oC |
| Storage | -25oC to +65oC |
| Humidity | 90% RH Non-Condensing |
| Environmental compliance | JSS-55555 / MIL 810D |
| EMI/EMC compliance | MIL-STD-461E |
